Lateral Pipe Wedge Wire Screens Manufacturer in India

Stainless Steel Wedge Wire Screen Filters Manufacturer in India

Lateral Pipe Wedge Wire Screens Specification

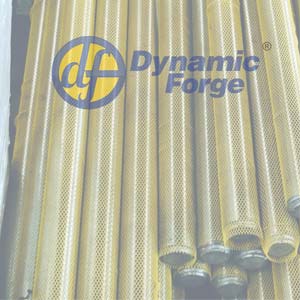

Profile Wire Size	0.75-3mm (PW63-1.5mm)
Slot Opening Size	0.05 – 2.0mm and Custom as required
Support Rod	Wedge, Round and Triangular Shape
Length	1″ – 8″ and Custom
Pressure Rating	Up to 100Bar
Temperature Rating	Up to 450°C
Type	Filter Cylinder
Flow	Foti, Fito
Origin	India
Max Flow	GPM
Surface Treatment	Pickling, Passivation, Polishing, Stress Relieving, Chrome Platin
Production Capacity	300 Pic / Day
Material Grade	SS 304/321/316L/904L, Super duplex steel 2507, Duplex Steel 2205, Titanium alloy TA2, Hastelloy C276
Filtration Accuracy	Screen Slot 0.1-1.0 Millimetre in (Mesh18 – Mesh150)
Assemblies Pattern	Fishbone, Ordinary radial, T-type
Diameter	34 MM, 29 MM, 42 MM, 32 MM, 45 MM, 58 MM, 54 MM, 94 MM, 62 MM, 84 MM, 70 MM, or Custom Diameter
Header or Hub Connection Size	8″SCH40, 3″SCH40, 2″SCH40, 6″SCH40, 4″SCH40, etc.
Lateral Assembly Qty	1 Row, 2 Rows, or 3 Rows
Materials	SS Grades 316, 321, 316L, 304, 904L, 304L, Hastelloy Alloy, Galvanized Carbon Steel
Hole Shape	Square
Usage	Solid Filter, Liquid Filter
Hs Code	84139100
Transport Package	Carton, Wooden Case, Torder
End Connection	M&F, Welded Ring, Flange

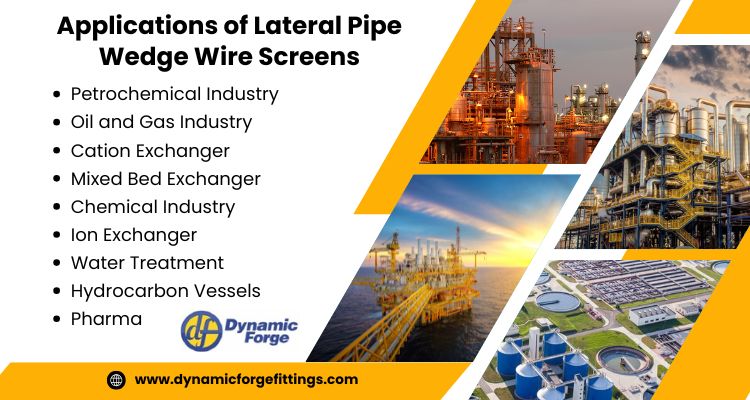

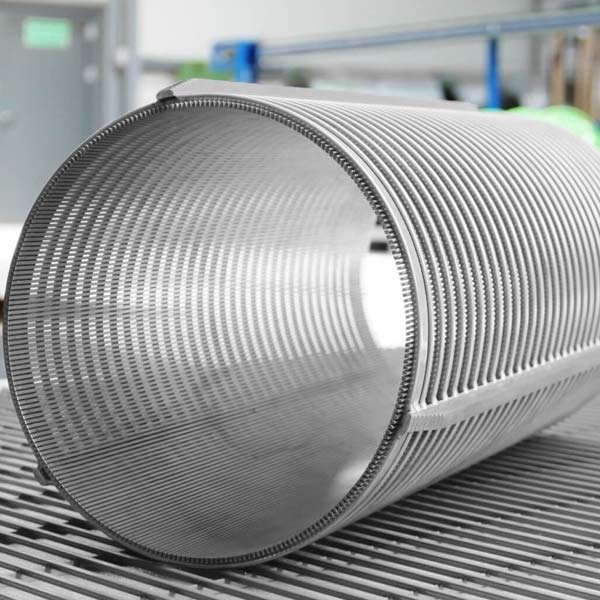

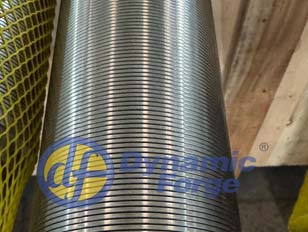

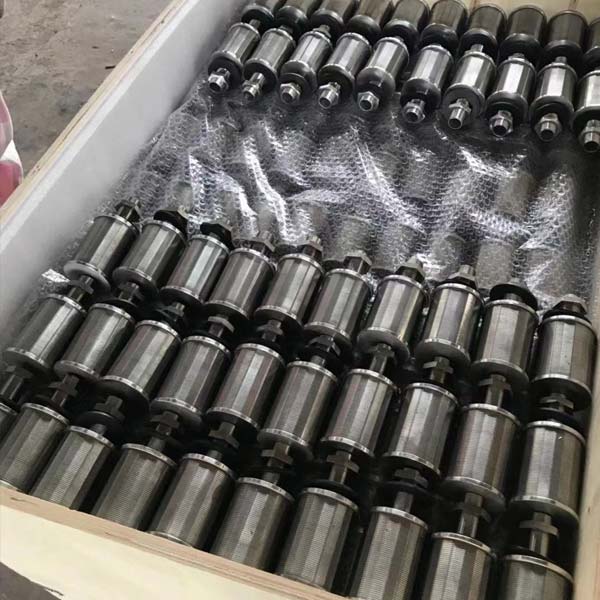

Stainless Steel Wedge Wire Screen Filters

Table of Content:

Features of Wedge Wire Filter

Slot Size: Up to 0.0004 In. (0.01 MM) & 0.002 In. (0.05 MM)
Diameter and Increments Starting at 0.79 in (20 MM) and Up
Type 304SS is Commonly Used, but 316LSS and Other Unusual Alloys Are Also Accessible.

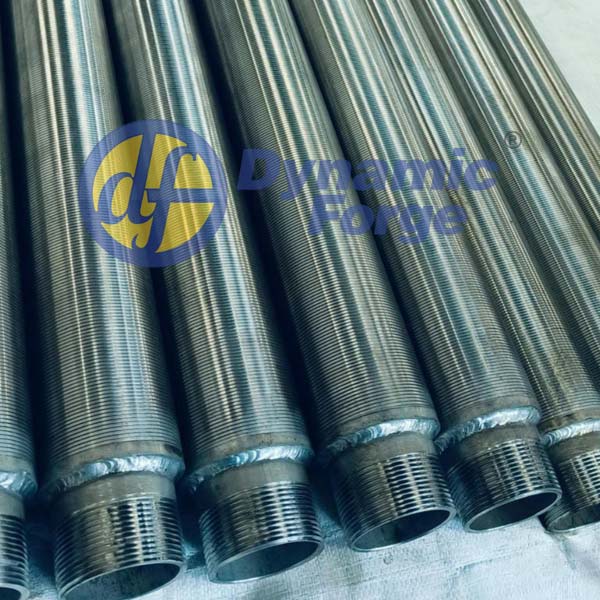

The Laterals Connected by Flanges, Couplings, or Threaded Fittings.
High Open Area
Low Maintenance Cost
Non-clogging
Various End Connections

Lateral Pipe Wedge Wire Screens Dimensions

NO. of Laterals	Lateral OD in (Millimetre)	Diameter in (Millimetre)	Hub Dia
8-12	42-89	2200	DN100-DN125
8-22	57-89	3200	DN125-DN200
6-8	25-57	1250	DN80
8-12	42-89	2000	DN80-DN125
8-20	57-89	3000	DN125-DN200
6-8	28-57	1600	DN80
8-20	57-89	2800	DN100-DN150
8-12	32-65	1800	DN80-DN100
8-16	57-89	2500	DN100-DN125

Advantages of Wedge Wire Screen Filters

Distribution of Flow via Dead Zone-free Treatment Media in Gas/Liquid’s.
Provide Vessel Shapes and Sizes in Side, Center, Top, or Bottom Inlet Piping to Fit.
Assemblies Design Can Accommodate Flow in Any Direction.

Low Carbon Steel Screens Weight Chart

Sizes in (Inches.)	Weight1 in (1bs./ft.)	Maximum Depth in (ft.)	Inside Diameter in (Inches.)	Outside Diameter in (Inches.)	Collapse Strength1 in (PSI)	Recom. Hang Weight2: in (lbs.)	Screen Size in Intake Area 3 (sq./ft) (Thousandths of an inch) Screen Slot Size
Sizes in (Inches.)	Weight1 in (1bs./ft.)	Maximum Depth in (ft.)	Inside Diameter in (Inches.)	Outside Diameter in (Inches.)	Collapse Strength1 in (PSI)	Recom. Hang Weight2: in (lbs.)	50	100	30	80	40	60
10T	11.1	250	8.6	9.5	90	16,700	129	189	90	170	111	144
	25.2	250	9.8	10.9	476	25,400	74	125	48	106	61	85
	22.6	1,000	8.6	9.7	674	23,600	66	111	42	95	54	76
14T	27.5	600	11.5	12.6	309	23,600	85	144	55	123	71	99
	29.1	1,000	11.5	12.6	357	23,600	101	167	66	143	84	116
6P	6.3	250	6.0	6.6	266	5,100	90	132	63	118	77	100
	15.5	1,000	5.9	6.9	1,855	14,500	47	79	30	67	39	54
12 P	31.2	600	11.8	12.9	333	29,000	103	171	68	147	86	119
	27.5	250	11.5	12.6	309	23,600	85	144	55	123	71	99
	34.3	1,000	11.8	13.0	502	29,000	92	155	60	132	76	106
8T	8.7	250	6.7	7.5	182	12,900	102	150	71	134	88	114
	17.9	1,000	6.7	7.7	1,340	18,100	52	88	34	75	43	60
12T	27.1	600	10.6	11.4	476	29,000	74	125	48	106	61	85
	29.5	250	11.8	12.9	288	29,000	87	148	56	126	72	101
	27.1	1,000	10.6	11.4	476	29,000	74	125	48	106	61	85
8P	9.9	250	7.9	8.7	117	14,100	118	174	83	155	102	132
	20.3	1,000	7.9	8.9	871	19,900	60	102	39	87	50	70
10 P	25.2	600	9.8	10.9	476	25,400	74	125	48	106	61	85
	27.1	250	10.6	11.4	476	29,000	74	125	48	106	61	85
	25.2	1,000	9.8	10.9	476	25,400	74	125	48	106	61	85
